- Place of Origin: Henan, China (Mainland)
- Brand Name: Henan Huatai
- Model Number: YJV YJV22 ZR-YJV ZR-YJV22 ZR-YJV32
- Insulation Material: XLPE
- Type: High Voltage
- Application: Power Station
- Conductor Material: Copper
- Jacket: PVC
- Black Red Yellow: white
Packaging & Delivery
|Packaging Details:||Wooden or iron drum or as customer's requirement.|
|Delivery Detail:||in 2 weekds or as per quanity.|
Specifications1 High Tension 8.7/15

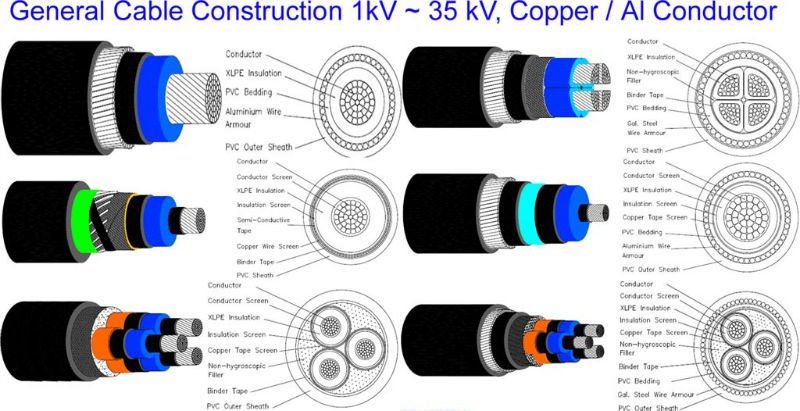

1:6~30KV XLPE Insulation PVC Sheath Power Cable
1. The applications: Rated voltage (U0/U) 0.6/1KV; 3.6/6 (7.2)KV; 6/10 (12)KV; 8.7/15 (17.5)KV; 12/20 (24)KV; 18/30 (36)KV in transmission & transformation line & for water-proofing purpose.
2. Standards: IEC60502-2 2005 ISO9001:2008
3. Product Features:
1) No necessary to heat up in advance while installing above 0oC.
2) Max. continuous normal operating Temperature: 70oC (PVC Sheathed Cable).
3) Max. Permissible temperature at short circuit (5s. at longest): 250oC.
4) Permissible bending radius:
Single core: ≥20(d+D)±5%.
Three-core:≥15(d+D)±5%(D is the actual overall diameter of cable, and d is the actual overall diameter of conductor).
Cross-linked XLPE insulation power cable not only has excellent electric and mechanical properties, but also has powerful resistance against chemical corrosion, heat-aging and environmental stress. Its structure is simple and can be used conveniently and also can be laid with no restriction of different levels. The long term operating temperature is 900C, and its transmission capacitance is large.
Our company can produce both flame retardant and non-flame retardant series of XLPE power cables. Our products can be produced according to our works specifications which are equivalent to GB12706, IEC60502, IEC60332, IEC60754, and its some indexes are superior to standards as stated above..
The flame-retardant cable covers all kinds of low-smoke, free-halogen, low-smoke halogen free and three classes of A, B, C. We can design and manufacture special XLPE cables according to the other standards require by the customers, such as heavy section cut part conductors, water-resistant, defend termites, defend mouse, and so on.
(Flame retardant) Cu, Al core XLPE insulated, PVC or PE sheathed power cable.
For laying indoor, tunnel, underground and canal. Unable to bear external mechanical pulling force and pressure during laid.
(Flame retardant) Cu, Al core XLPE insulated, steel armoured, PVC or PE sheathed power cable.
For laying indoor, tunnel, underground and canal. Able to bear external mechanical pulling force , but unable to bear large pulling force.
(Flame retardant) Cu, Al core XLPE insulated, fine steel wire armoured, PVC or PE sheathed power cable
For laying in shaft, water under ground and large difference of level, able to bear mechanical pressure and moderate pulling force.
(Flame retardant) Cu, Al core XLPE insulated, thick steel wire armoured, PVC or PE sheathed power cable
For laying in the water, seabed and large difference of level, able to bear large mechanical pressure and pulling force.
